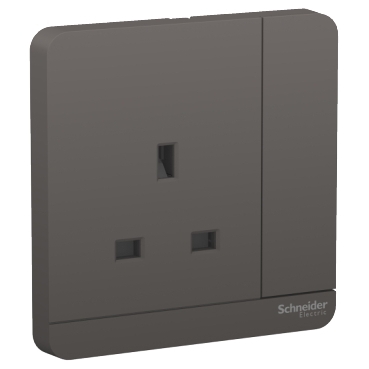

Schneider Electric AvatarOn – 13A, 250V 3-Pin Switched Socket (Dark Grey, E8315_DG_G12)
Product Description
The Schneider Electric AvatarOn E8315_DG_G12 is a 3-pin, 13A switched socket designed in compliance with the British BS 1363A standard.
Crafted from durable polycarbonate with a sleek dark grey glossy finish, this socket provides both safety and style. Featuring a shuttered outlet for enhanced child protection, screw terminals for secure wiring, and a flush-mount design for seamless installation, it is ideal for modern residential and commercial spaces.
As part of the AvatarOn range, it allows interchangeable faceplates, giving you the freedom to change finishes effortlessly to match your interior design. Certified to BS 1363, MS 589, and SS 145, it ensures reliable and safe performance while being an eco-friendly Green Premium product.
Technical Specifications
Main
-
Range: AvatarOn
-
Model: E8315_DG_G12
-
Product Type: Switched socket
-
Outlet Configuration: 3P (3-pin)
-
No. of Gangs: 1 gang
-
Outlet Standard: British BS 1363A (with earthing contact)
-
Rated Current: 13 A
-
Rated Voltage: 250 V AC, 50/60 Hz
-
IP Rating: IP20 (indoor use)
-
Colour: Dark Grey (glossy finish)
Build & Design
-
Material: Polycarbonate (high impact resistance)
-
Finish: Glossy painted
-
Mounting: Flush (surface wall box compatible)
-
Fixing Mode: Screw type
-
Faceplate Options: Interchangeable (AvatarOn range)
-
Dimensions: 86 × 86 × 31.7 mm
-
Additional Features: Shuttered outlet for safety
Performance
-
Service Life: 20,000 mechanical cycles
-
Electrical Durability: 5,000 cycles
-
Operating Temperature: -5°C to +45°C
-
Storage Temperature: -5°C to +60°C
-
Humidity: 0–95% RH
Compliance & Certification
-
Standards: BS 1363, MS 589, SS 145
-
Certifications: SIRIM, Green Premium (eco-friendly product)
Packing Information
-
Single Unit (PCE): 86 × 86 × 32 mm, 84 g
-
Carton (CAR, 12 pcs): 190 × 195 × 95 mm, 1.008 kg
Key Features & Benefits
✅ 13A socket, BS 1363 standard – perfect for most household appliances
✅ Dark Grey glossy finish – elegant, modern look for stylish interiors
✅ Child-safe shuttered outlet – added protection in homes and offices
✅ Interchangeable faceplates – easy design customization
✅ Durable polycarbonate build – reliable and long-lasting
✅ Green Premium product – eco-friendly and sustainable choice
